C SERIES® COMMERCIAL BRONZE PUMPS (Pentair)

Pool Equipment & Supplies » Pentair Product Catalog 2010 » Commercial Equipment » Commercial Pumps
Audio Accounts Products Images

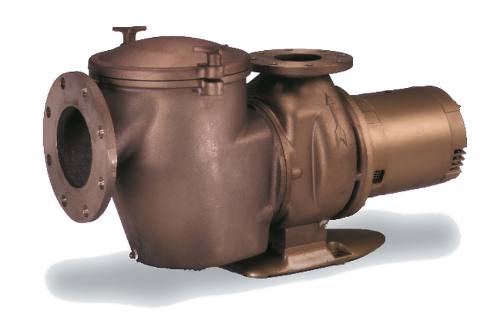

C SERIES® COMMERCIAL BRONZE PUMPS
Click here to view full image.
This product is part of
Pentair Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
With and Without Hair and Lint Strainer.


Bronze volute and pot, coated cast iron foot, flanged connections, 6 in. suction, 4 in. discharge
  • Heat-resistant seal capable of operation at up to 150F
  • Closed impeller for longer motor bearing life
  • Available in single and three-phase, 50 and 60-Hertz models
  • Easy serviceability
  • High performance motors for maximum flow
  • All-bronze construction for strength and durability
  • Large commercial pump with s/s basket
  • Heavy-gauge stainless steel strainer basket with an open area 5 times the area of the suction port
  • 6 in. suction (5 in. without pot) and 4 in. discharge for maximum capabilities
CHK/CMK THREE-PHASE 575V 60 HERTZ; CHKL/CMKL THREE-PHASE 380/415V 50 HERTZ : Not NSF listed


CHK/CMK THREE-PHASE 575V 60 HERTZ; CHKL/CMKL THREE-PHASE 380/415V 50 HERTZ ; CH/CM SINGLE-PHASE 230V ONLY 60 HERTZ without Hair and Lint Strainer: 208V not available.


CHK/CMK THREE-PHASE 200/208V 60 HERTZ ; CH/CM SINGLE-PHASE 230V ONLY 60 HERTZ; CHK/CMK THREE-PHASE 200/208V 60 HERTZ without Hair and Lint Strainer; CHK/CMK THREE-PHASE 208/220/440V 60 HERTZ without Hair and Lint Strainer: Full load amps shown.


Accessories: Thermoplastic PVC socket style
Product Information
Name:C SERIES® COMMERCIAL BRONZE PUMPS
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(816) 221-1731
Fax:(816) 221-1726
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:C SERIES® COMMERCIAL BRONZE PUMPS
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

CHK/CMK THREE-PHASE 200/208V 60 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 347940
MODEL: CMK-50, VOLTAGE: 200/208V, AMPS: 16.1, HP: 5 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347941
MODEL: CHK-50, VOLTAGE: 200/208V, AMPS: 16.1, HP: 5 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347942
MODEL: CMK-75, VOLTAGE: 200/208V, AMPS: 22.3, HP: 7.5 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347943
MODEL: CHK-75, VOLTAGE: 200/208V, AMPS: 22.3, HP: 7.5 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347944
MODEL: CMK-100, VOLTAGE: 200/208V, AMPS: 28.7, HP: 10 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347945
MODEL: CHK-100, VOLTAGE: 200/208V, AMPS: 28.7, HP: 10 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347946
MODEL: CMK-150, VOLTAGE: 200/208V, AMPS: 43.7, HP: 15 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347947
MODEL: CHK-150, VOLTAGE: 200/208V, AMPS: 43.7, HP: 15 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote

Part#: 347948
MODEL: CHK-200, VOLTAGE: 200/208V, AMPS: 54.05, HP: 20 - CHK/CMK Three-Phase 200/208V 60 Hertz		 Request a Quote


CHK/CMK THREE-PHASE 208/220/440V 60 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 011657
MODEL: CHK-50, VOLTAGE: 208/220/440V, AMPS: 13/6.5, HP: 5 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011652
MODEL: CMK-50, VOLTAGE: 208/220/440V, AMPS: 13/6.5, HP: 5 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011658
MODEL: CHK-75, VOLTAGE: 208/220/440V, AMPS: 18.4/9.2, HP: 7.5 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011653
MODEL: CMK-75, VOLTAGE: 208/220/440V, AMPS: 18.4/9.2, HP: 7.5 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011659
MODEL: CHK-100, VOLTAGE: 208/220/440V, AMPS: 25.3/12.7, HP: 10 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011654
MODEL: CMK-100, VOLTAGE: 208/220/440V, AMPS: 25.3/12.7, HP: 10 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011660
MODEL: CHK-150, VOLTAGE: 208/220/440V, AMPS: 37.6/18.8, HP: 15 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011655
MODEL: CMK-150, VOLTAGE: 208/220/440V, AMPS: 37.6/18.8, HP: 15 - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote

Part#: 011661
MODEL: CHK-200, VOLTAGE: 208/220/440V, AMPS: 49/24.6, HP: 20 - CHK/CMK Three-Phase 220/440V 60 Hertz - CHK/CMK Three-Phase 220/440V 60 Hertz		 Request a Quote


CHK/CMK THREE-PHASE 575V 60 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 347931
MODEL: CMK-50, VOLTAGE: 575V, AMPS: 4.8, HP: 5 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347967
MODEL: CHK-50, VOLTAGE: 575V, AMPS: 4.8, HP: 5 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347936
MODEL: CMK-75, VOLTAGE: 575V, AMPS: 7.8, HP: 7.5 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347937
MODEL: CHK-75, VOLTAGE: 575V, AMPS: 7.8, HP: 7.5 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347932
MODEL: CMK-100, VOLTAGE: 575V, AMPS: 7.5, HP: 10 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347968
MODEL: CHK-100, VOLTAGE: 575V, AMPS: 7.5, HP: 10 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347933
MODEL: CHK-150, VOLTAGE: 575V, AMPS: 10, HP: 15 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347934
MODEL: CMK-150, VOLTAGE: 575V, AMPS: 15.2, HP: 15 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote

Part#: 347935
MODEL: CHK-200, VOLTAGE: 575V, AMPS: 15.2, HP: 20 - CHK/CMK Three-Phase 575V 60 Hertz		 Request a Quote


CHKL/CMKL THREE-PHASE 380/415V 50 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 014900
MODEL: CMKL-50, VOLTAGE: 380/415V, AMPS: 7.5, HP: 5 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014880
MODEL: CHKL-50, VOLTAGE: 380/415V, AMPS: 7.5, HP: 5 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014901
MODEL: CMKL-75, VOLTAGE: 380/415V, AMPS: 11.4, HP: 7.5 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014881
MODEL: CHKL-75, VOLTAGE: 380/415V, AMPS: 11.4, HP: 7.5 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014902
MODEL: CMKL-100, VOLTAGE: 380/415V, AMPS: 15, HP: 10 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014882
MODEL: CHKL-100, VOLTAGE: 380/415V, AMPS: 15, HP: 10 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014903
MODEL: CMKL-150, VOLTAGE: 380/415V, AMPS: 22, HP: 15 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014883
MODEL: CHKL-150, VOLTAGE: 380/415V, AMPS: 22, HP: 15 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote

Part#: 014884
MODEL: CHKL-200, VOLTAGE: 380/415V, AMPS: 21, HP: 20 - CHKL/CMKL Three-Phase 380/415V 50 Hertz		 Request a Quote


CH/CM SINGLE -PHASE 200/208V ONLY 60 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 347938
MODEL: CM-50, VOLTAGE: 200/208V, AMPS: 29, HP: 5 - CH/CM Single-Phase 200/208V Only 60 Hertz		 Request a Quote

Part#: 347939
MODEL: CH-50, VOLTAGE: 200/208V, AMPS: 29, HP: 5 - CH/CM Single-Phase 200/208V Only 60 Hertz		 Request a Quote

Part#: 348001
MODEL: CM-75 1, VOLTAGE: 200/208V, AMPS: 39.6, HP: 7.5 - CH/CM Single-Phase 200/208V Only 60 Hertz		 Request a Quote

Part#: 348005
MODEL: CH-75 1, VOLTAGE: 200/208V, AMPS: 39.6, HP: 7.5 - CH/CM Single-Phase 200/208V Only 60 Hertz		 Request a Quote


CH/CM SINGLE-PHASE 230V ONLY 60 HERTZ (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 011651
MODEL: CM-50, VOLTAGE: 230V Only, AMPS: 24, HP: 5 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote

Part#: 011656
MODEL: CH-50, VOLTAGE: 230V Only, AMPS: 24, HP: 5 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote

Part#: 347916
MODEL: CH-75, VOLTAGE: 230V Only, AMPS: 37, HP: 7.5 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote

Part#: 347917
MODEL: CM-75, VOLTAGE: 230V Only, AMPS: 37, HP: 7.5 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote

Part#: 347963
MODEL: CH-100, VOLTAGE: 230V Only, AMPS: 51, HP: 10 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote

Part#: 347964
MODEL: CM-100, VOLTAGE: 230V Only, AMPS: 51, HP: 10 - CH/CM Single-Phase 230V Only 60 Hertz		 Request a Quote


CHK/CMK THREE-PHASE 200/208V 60 HERTZ without Hair and Lint Strainer (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 347951
MODEL: CMK-50, VOLTAGE: 200/208V, AMPS: 16.1, HP: 5 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347952
MODEL: CHK-50, VOLTAGE: 200/208V, AMPS: 16.1, HP: 5 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347953
MODEL: CMK-75, VOLTAGE: 200/208V, AMPS: 22.3, HP: 7.5 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347954
MODEL: CHK-75, VOLTAGE: 200/208V, AMPS: 22.3, HP: 7.5 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347955
MODEL: CMK-100, VOLTAGE: 200/208V, AMPS: 28.7, HP: 10 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347956
MODEL: CHK-100, VOLTAGE: 200/208V, AMPS: 28.7, HP: 10 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347957
MODEL: CMK-150, VOLTAGE: 200/208V, AMPS: 43.7, HP: 15 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347958
MODEL: CHK-150, VOLTAGE: 200/208V, AMPS: 43.7, HP: 15 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347959
MODEL: CHK-200, VOLTAGE: 200/208V, AMPS: 54.05, HP: 20 - CHK/CMK Three-Phase 200/208V 60 Hertz without Hair and Lint Strainer		 Request a Quote


CHK/CMK THREE-PHASE 220/440V 60 HERTZ without Hair and Lint Strainer (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 011601
MODEL: CMK-50, VOLTAGE: 208/220/440V, AMPS: 13/6.5, HP: 5 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011606
MODEL: CHK-50, VOLTAGE: 208/220/440V, AMPS: 13/6.5, HP: 5 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011607
MODEL: CHK-75, VOLTAGE: 208/220/440V, AMPS: 18.4/9.2, HP: 7.5 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011602
MODEL: CMK-75, VOLTAGE: 208/220/440V, AMPS: 18.4/9.2, HP: 7.5 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011608
MODEL: CHK-100, VOLTAGE: 220/440V, AMPS: 25.3/12.7, HP: 10 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011603
MODEL: CMK-100, VOLTAGE: 220/440V, AMPS: 25.3/12.7, HP: 10 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011604
MODEL: CMK-150, VOLTAGE: 220/440V, AMPS: 37.6/18.8, HP: 15 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011609
MODEL: CHK-150, VOLTAGE: 220/440V, AMPS: 37.6/18.8, HP: 15 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 011610
MODEL: CHK-200, VOLTAGE: 220/440V, AMPS: 49/24.6, HP: 20 - CHK/CMK Three-Phase 220/440V 60 Hertz without Hair and Lint Strainer		 Request a Quote


CH/CM SINGLE -PHASE 200/208V ONLY 60 HERTZ without Hair and Lint Strainer (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 347949
MODEL: CM-50, VOLTAGE: 200/208V, AMPS: 29, HP: 5 - CH/CM Single-Phase 200/208V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347950
MODEL: CH-50, VOLTAGE: 200/208V, AMPS: 29, HP: 5 - CH/CM Single-Phase 200/208V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347960
MODEL: CH-75, VOLTAGE: 200/208V, AMPS: 39.6, HP: 7.5 - CH/CM Single-Phase 200/208V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347961
MODEL: CM-75, VOLTAGE: 200/208V, AMPS: 39.6, HP: 7.5 - CH/CM Single-Phase 200/208V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote


CH/CM SINGLE-PHASE 230V ONLY 60 HERTZ without Hair and Lint Strainer (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 011605
MODEL: CH-50, VOLTAGE: 230V Only, AMPS: 24, HP: 5 - CH/CM Single-Phase 230V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 348006
MODEL: CH-75, VOLTAGE: 230V Only, AMPS: 37, HP: 7.5 - CH/CM Single-Phase 230V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 348007
MODEL: CM-75, VOLTAGE: 230V Only, AMPS: 37, HP: 7.5 - CH/CM Single-Phase 230V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347965
MODEL: CH-100, VOLTAGE: 230V Only, AMPS: 51, HP: 10 - CH/CM Single-Phase 230V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote

Part#: 347966
MODEL: CM-100, VOLTAGE: 230V Only, AMPS: 51, HP: 10 - CH/CM Single-Phase 230V Only 60 Hertz without Hair and Lint Strainer		 Request a Quote


Accessories (C SERIES® COMMERCIAL BRONZE PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 357259
Flange 2.5 in. w/gasket and SS hardware		 Request a Quote

Part#: 357260
Flange 5 in. w/gasket and SS hardware		 Request a Quote

Part#: 357261
Flange 3 in. w/gasket and SS hardware		 Request a Quote

Part#: 357262
Flange 4 in. w/gasket and SS hardware		 Request a Quote

Part#: 357263
Flange 6 in. w/gasket and SS hardware		 Request a Quote
