THS SERIES® HORIZONTAL SAND FILTER (Pentair)

Pool Equipment & Supplies » Pentair Product Catalog 2010 » Commercial Equipment » Commercial Filters
Audio Accounts Products Images

THS SERIES® HORIZONTAL SAND FILTER
Click here to view full image.

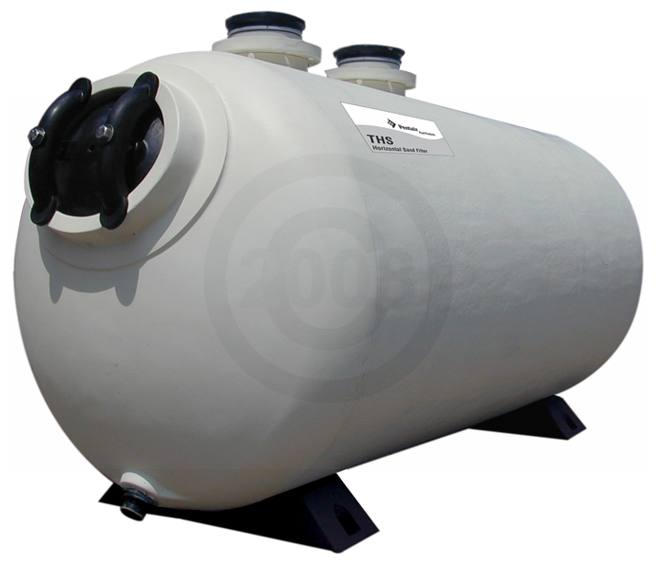

THS Horizontal Sand Filter
This product is part of
Pentair Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
Introducing the best in filter technology.


The THS Filter is an NSF-approved 50 psi rated tank with flow rates up to 535 gallons per minute. The filter shell is manufactured from a unique and lasting composite laminate design that makes winding unnecessary. Paracote®, a waterbased, environmentallyfriendly coating, provides remarkable surface protection.
  • Lateral V-slots for self-cleaning
  • Influent manifold distribution to prevent clogging
  • NSF approved from 5-20 gpm/sq. ft.
  • Optional manual, semi-automatic, and automatic backwash systems for one and two tank systems
  • Four sizes to 27 sq. ft.
  • Manway in front for easy access and smaller footprint
  • 6 in. flanged connections
140325: Adder Kit provides 6 in., SCH 80 manifold piping, fittings and hardware for the addition of a third THS filter of equal diameter only when #155720 Dual-Filter Butterfly Valve Face Piping Kit is used. Note: Using a 6 in. Schedule 80 plumbing kit with flows in excess of 812 GPM exceeds the maximum water velocity recommended in ANSI/NSPI-1 2003 Standard for Public Swimming Pools. For higher flows, summary calculations should be provided to show that the greater flow is possible with the pump and piping provided.
Product Information
Name:THS SERIES® HORIZONTAL SAND FILTER
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(816) 221-1731
Fax:(816) 221-1726
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:THS SERIES® HORIZONTAL SAND FILTER
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

THS HORIZONTAL FILTER (THS SERIES® HORIZONTAL SAND FILTER) [^top]
Qty Description   Our Price (USD)
Part#: 143484
MODEL: THS3484, EFFECTIVE FILTRATION AREA: 19, FLOW RATE (15GPM/SQ FT): 285, 8 HOUR TURN OVER CAPACITY (IN GALLONS): 136800, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 600, FILTER MEDIA SAND REQUIRED (LBS): 1350, ALL SAND REQUIRED (LBS): 1950, CARTON WT. (LBS): 610 - THS 34 in. x 84 in.		 Request a Quote

Part#: 144272
MODEL: THS4272, EFFECTIVE FILTRATION AREA: 19.7, FLOW RATE (15GPM/SQ FT): 295, 8 HOUR TURN OVER CAPACITY (IN GALLONS): 141600, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 500, FILTER MEDIA SAND REQUIRED (LBS): 2100, ALL SAND REQUIRED (LBS): 2600, CARTON WT. (LBS): 650 - THS 42 in. x 72 in.		 Request a Quote

Part#: 144284
MODEL: THS4284, EFFECTIVE FILTRATION AREA: 23.2, FLOW RATE (15GPM/SQ FT): 348, 8 HOUR TURN OVER CAPACITY (IN GALLONS): 167040, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 600, FILTER MEDIA SAND REQUIRED (LBS): 2400, ALL SAND REQUIRED (LBS): 3000, CARTON WT. (LBS): 725 - THS 42 in. x 84 in.		 Request a Quote

Part#: 144296
MODEL: THS4296, EFFECTIVE FILTRATION AREA: 26.7, FLOW RATE (15GPM/SQ FT): 400, 8 HOUR TURN OVER CAPACITY (IN GALLONS): 192000, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 700, FILTER MEDIA SAND REQUIRED (LBS): 2800, ALL SAND REQUIRED (LBS): 3500, CARTON WT. (LBS): 800 - THS 42 in. x 96 in.		 Request a Quote

Part#: 143461
MODEL: THS3461, EFFECTIVE FILTRATION AREA: 13.5, FLOW RATE (15GPM/SQ FT): 203, 8 HOUR TURN OVER CAPACITY (IN GALLONS): 97440, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 300, FILTER MEDIA SAND REQUIRED (LBS): 1250, ALL SAND REQUIRED (LBS): 1550, CARTON WT. (LBS): 550 - THS 34 in. x 61 in.		 Request a Quote


CONTROLLERS (MUST USE WITH DIAPHRAGM VALVES MANIFOLD KITS) (THS SERIES® HORIZONTAL SAND FILTER) [^top]
Qty Description   Our Price (USD)
Part#: 156400
Single THS semi-automatic controller		 Request a Quote

Part#: 156450
THS single tank manifold kit with butterfly valves (does not require a purchase of a controller)		 Request a Quote

Part#: 156800
Dual THS autobackwash controller		 Request a Quote

Part#: 156850
Single THS autobackwash controller		 Request a Quote


MANIFOLD KITS (THS SERIES® HORIZONTAL SAND FILTER) [^top]
Qty Description   Our Price (USD)
Part#: 140325
Adder kit for third THS Filter		 Request a Quote

Part#: 155701
THS single tank 6 in. FP kit with diaphragm valves		 Request a Quote

Part#: 156100
Temperature probe kit (only used with controller option)		 Request a Quote

Part#: 155703
Kit-THS3461, single tank manifold, with diaphragm valve kit		 Request a Quote

Part#: 156150
Flowmaster saddle kit (only used with controller option)		 Request a Quote

Part#: 155721
THS dual 34 in. dia. 6 in. FP kit with diaphragm valves		 Request a Quote

Part#: 155700
THS single tank manifold kit with butterfly valves (does not require a purchase of a controller)		 Request a Quote

Part#: 155723
Kit-THS3461, dual tank manifold, with diaphragm valve kit		 Request a Quote

Part#: 155702
Kit-THS3461, single tank manifold, with butterfly valve kit (does not require a purchase of a controller)		 Request a Quote

Part#: 155730
THS dual 42 in. dia. 6 in FP Kit with diaphragm valves		 Request a Quote

Part#: 155720
THS dual tank manifold kit with butterfly valves (does not require a purchase of a controller)		 Request a Quote

Part#: 155800
WA-KIT wedge anchor kit (one each per tank purchased if required)		 Request a Quote

Part#: 155722
Kit-THS3461, dual tank manifold, with butterfly valve kit (does not require a purchase of a controller)		 Request a Quote

Part#: 155850
BVA-KIT 1/2 in. ball valve adapter kit for manual air relief (one each per tank purchased if required)		 Request a Quote

Part#: 155705
Manway with Viewport upgrade		 Request a Quote

Part#: 155706
Manway with Viewport Retrofit Kit		 Request a Quote
